TCL 20 A 5G / 4X 5G

Info Photos News Forum  1 Hands-On ›

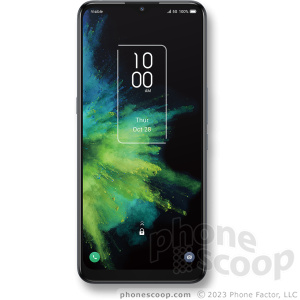

(phone photo)
1 of 2

This affordable 5G phone sports a large battery, fast charging, fingerprint reader, dual-band Wi-Fi, expandable storage, and a headset jack.

Offered By:

Specs


Compare side-by-side vs...
Display 6.5 in   diagonal, 20:9
HD+   720 x 1600 pixels
269 ppi   approx.
Type: LCD (TFT/TFD)
HDR
Battery 4,500 mAh
Non-removable
Talk: 34 hours max.
Standby: 624 hours max.
Processor Qualcomm Snapdragon 480
2 GHz, octa-core
4 GB RAM
Storage 64 GB raw hardware
44 GB available to user
Expandable via memory card
Cameras

Main: 16 megapixel
LED flash
auto HDR, portrait, pro mode, light trace, panorama, auto scene detection, timer, Google Lens, calorie detection

Wide: 5 megapixel

Macro: 2 megapixel

Video: 1080p HD
slow motion, stop motion, "short video"

Front Camera 13 megapixel
Weight 6.88 oz   195 g
Dimensions 6.48 x 2.97 x 0.35 in   165 x 75 x 8.9 mm
OS / Platform Android version 11
Network Bands

5G: 2, 5, 25, 41, 66, 71, 77-C

4G LTE: 2, 4, 5, 12, 13, 25, 26, 41, 66, 71

WCDMA: 2, 4, 5

GSM: 850, 900, 1800, 1900

not all versions support LTE 12, 25, 26, 41, 71

NR   5G
band 2 / 1900 MHz   PCS (Americas)
band 5 / 850 MHz   Cellular (Americas, Oceania, Brazil, Israel)
band 25 / 1900 MHz   PCS+G (USA (T-Mobile))
band 41 / 2500 MHz   BRS / EBS (USA (T-Mobile))
band 66 / 1700 MHz   AWS-3 (Americas)
band 71 / 600 MHz   600 (USA (T-Mobile))
band 77-C / 3700 MHz   C-Band (North America)

LTE   4G
band 2 / 1900 MHz   PCS (Americas)
band 4 / 1700 MHz   AWS (Americas)
band 5 / 850 MHz   Cellular (Americas, Oceania, Brazil, Israel)
band 12 / 700 MHz   Lower 700 (USA)
band 13 / 750 MHz   Upper 700 (USA (Verizon))
band 25 / 1900 MHz   PCS+G (USA (T-Mobile))
band 26 / 850 MHz   Extended Cellular (USA (T-Mobile))
band 41 / 2500 MHz   BRS / EBS (USA (T-Mobile))
band 66 / 1700 MHz   AWS-3 (Americas)
band 71 / 600 MHz   600 (USA (T-Mobile))

WCDMA   3G
band 2 (II) / 1900 MHz   PCS (Americas)
band 4 (IV) / 1700 MHz   AWS (Americas)
band 5 (V) / 850 MHz   Cellular (Americas, Oceania, Brazil, Israel)

GSM   2G
band 5 / 850 MHz   Cellular (Americas, Oceania, Brazil, Israel)
band 8 / 900 MHz   (Europe, Asia, Africa)
band 3 / 1800 MHz   DCS (Europe, Asia, Africa)
band 2 / 1900 MHz   PCS (Americas)

NOTE: not all versions support LTE 12, 25, 26, 41, 71

Data Technology NR (5G)
SIM card size Nano   4FF

Advertisements       phone info continues below...

Features


Ungroup Features   Show all features
Barometer Yes
Fingerprint Reader Type: stand-alone
Flashlight Yes
Ruggedized -
VR-ready -
Water-Resistant -
Accessibility
Hearing Aid Compatible Rating: M3, T3 (mostly tele-coil compatible)
TTY/TDD (Digital) -
Alerts
Extra Display -
Ringer Profiles -
Connectivity
Bluetooth Supported Profiles: HSP, HFP, OPP, PBA, A2DP, AVRC, HID, PAN, SAP, MAP
version 5.1
Infrared (IR) -
MirrorLink -
NFC -
USB Connector: USB Type C
supports OTG
UWB -
Wi-Fi Version: 5 (802.11 a,ac,b,g,n)
Customization
Changeable Body Plates -
Data & Network
Dual-SIM -
Input
Side Keys Google Assistant on left / volume, lock on right
Stylus -
Text Keyboard, Hardware -
Touch Screen Type: Capacitive
Memory
Memory Card Slot Card Type: microSD
up to 512 GB
Music
FM Radio Yes
Headphone Jack (3.5mm) Yes
Stereo Speakers Yes
Photo & Video
DLNA -
Miracast -
TV Output -
Power
Fast Charging 18W charger included (9V, 2A)
Wireless Charging -
Voice
Call Screening -
HD Voice Yes
Push-To-Talk -
Speaker Phone Yes

More

FCC ID 2ACCJH137 »   approved Jun 29, 2021
